All replacement door models
Series M-1500

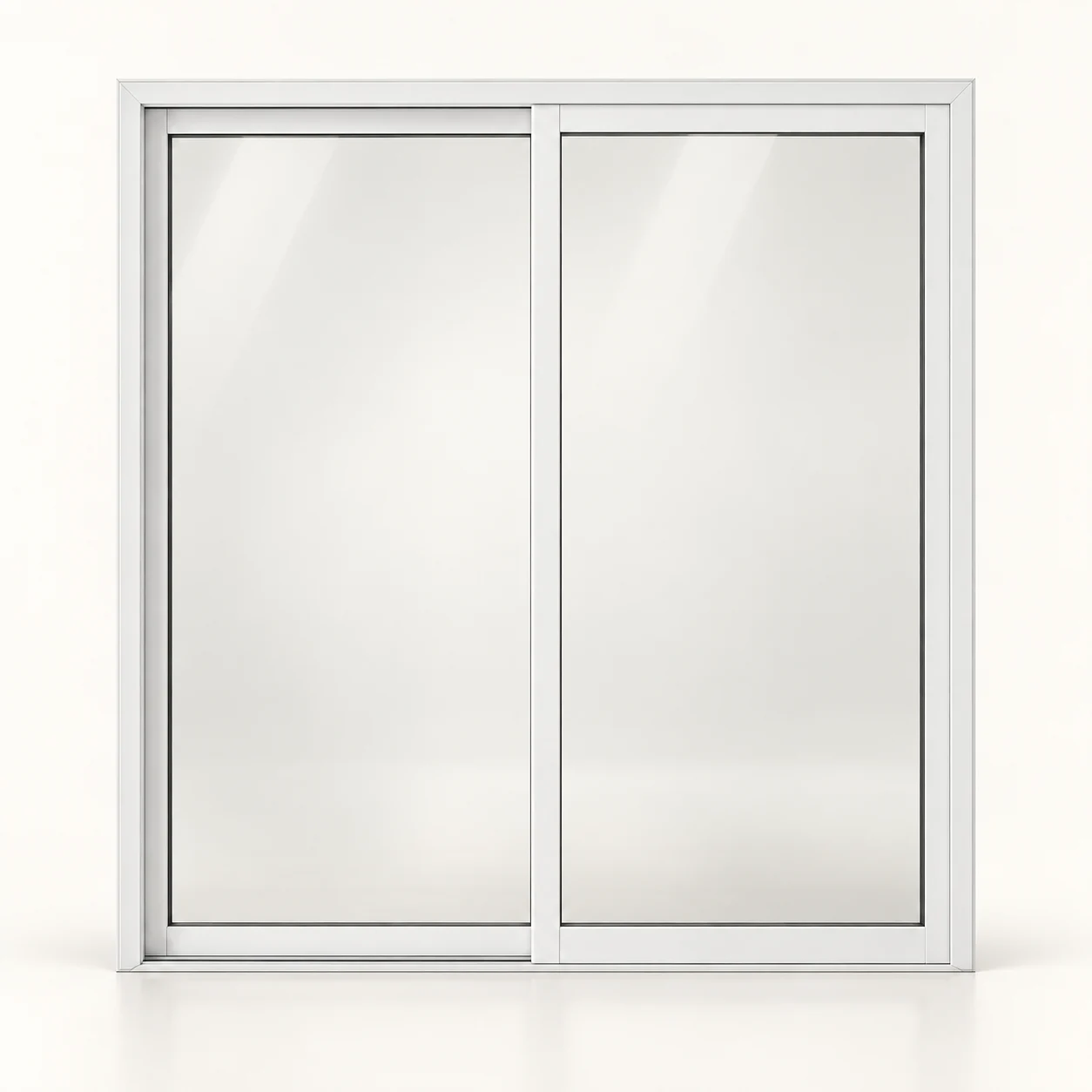

M-1500 Thermally Broken Sliding Patio Door
Aluminum replacement sliding patio door with thermally broken frame and sashes, 7/8-inch insulated tempered safety glass and a heavy-duty sliding screen.
Base budget: $2,216.91
Base budget for the stated standard configuration. Options, packaging, freight and customer tax are additional. Final written quote required.
Request this modelSizes and construction
- Base size
- 59-3/8 x 80 inches, two panels
- Jamb thickness
- 4-3/8 inches
- Standard finishes
- Bronze, white or tan
- Glass
- Low-E / clear insulated tempered glass
Options to confirm
- Two-panel widths: 59-3/8, 71-3/8 or 95-3/8 inches
- Three-panel widths: 107-1/4 or 143-1/4 inches
- All listed heights are 80 inches
- Special finishes, four panels and larger sizes require separate quotes
Measure before ordering
Record widths at the top, middle and bottom, heights on both sides and at the center, and both diagonals. Include photos of the mounting surface, sill and existing hardware. Confirm finished manufacturing dimensions and handing in writing.
Door measuring guide
