All Aluminum Thermally Broken Slim Profile (PDTS.64)
Explore All Aluminum Thermally Broken Slim Profile (PDTS.64) for entryways and indoor-outdoor living. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for entryways and indoor-outdoor living
Featuring a thermally broken slim profile, this pivot door offers excellent insulation and a contemporary design for energy-efficient elegance.
All Aluminum Thermally Broken Slim Profile (PDTS.64): maximum panel height 144"; maximum panel width 96"; stile 2 ⁷⁄₁₆"; style Modern.
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Photography & design details
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Surface Threshold
Recessed Thresholds

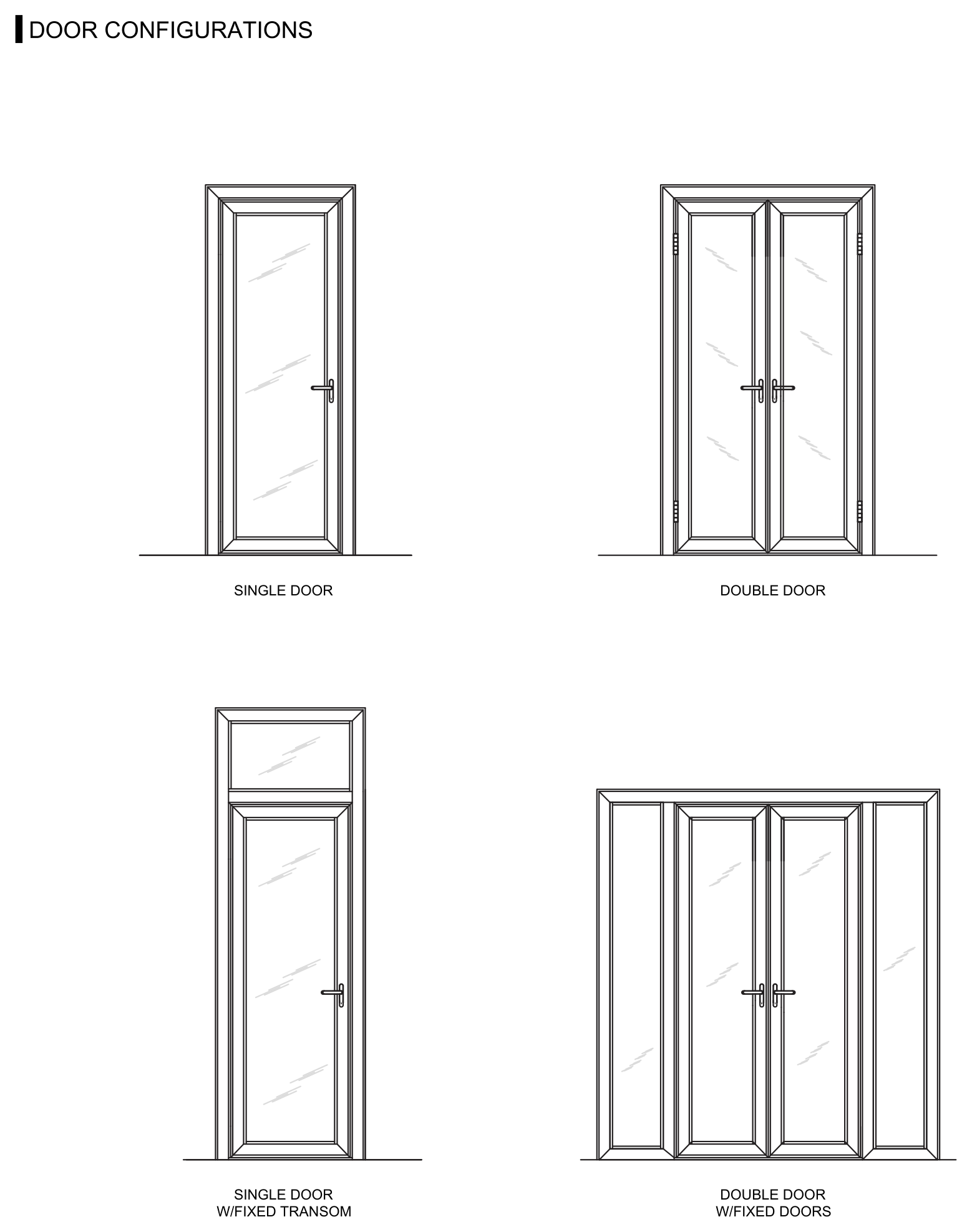

Configurations
Sidelites & Transoms
Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 144"
- Minimum Panel Height
- 80"
- Maximum Panel Width
- 96"
- Minimum Panel Width
- 40"
- Maximum Panel Weight
- 900 lbs
- Panel Depth
- 2 ¹⁵⁄₁₆"
- Maximum Number of Panels
- Unlimited
- Stile
- 2 ⁷⁄₁₆"
- Rail
- 2 ⁷⁄₁₆"
Design and installation planning
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Your project
Request a quote
All Aluminum Thermally Broken Slim Profile (PDTS.64). Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
