System catalog / Solid Wood (LWWS.12)

lift and slide doors

Solid Wood (LWWS.12)

Explore Solid Wood (LWWS.12) for entryways and indoor-outdoor living. Compare the photographs, frame construction and available options before requesting project pricing.

Request project pricingDesign and installation

Made to order. Price, approved dimensions and lead time are confirmed in the quote.

Lift and Slide Doors, Private Residence

Planning this system for entryways and indoor-outdoor living

Crafted from high-quality wood, this system offers a warm, natural aesthetic with the durability and functionality of modern lift and slide technology.

Solid Wood (LWWS.12): maximum panel height 144"; maximum panel width 192"; stile 4"; style Traditional.

Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.

Photography & design details

Lift and Slide Doors, Private Residence

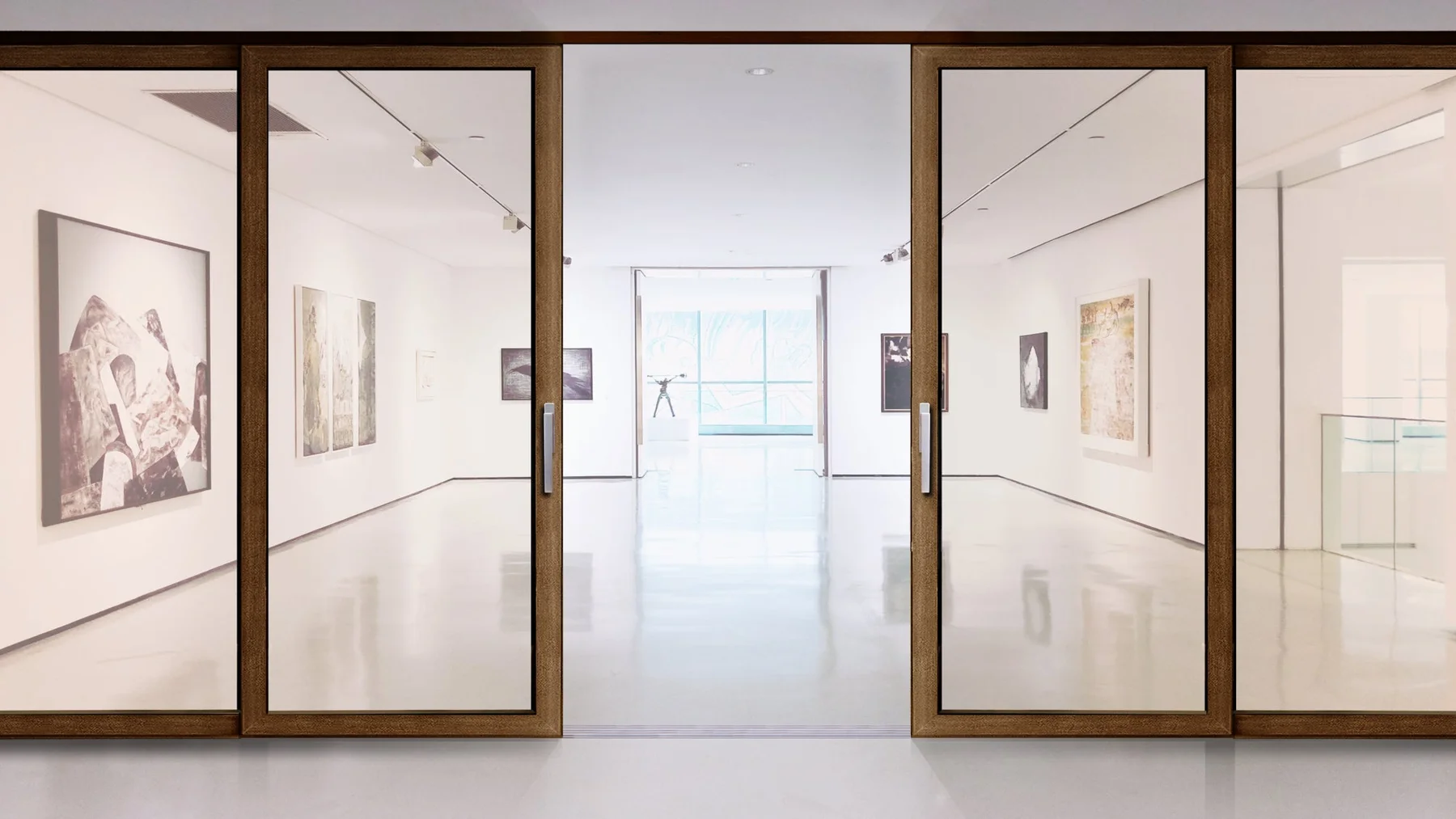

Lift and Slide, Office

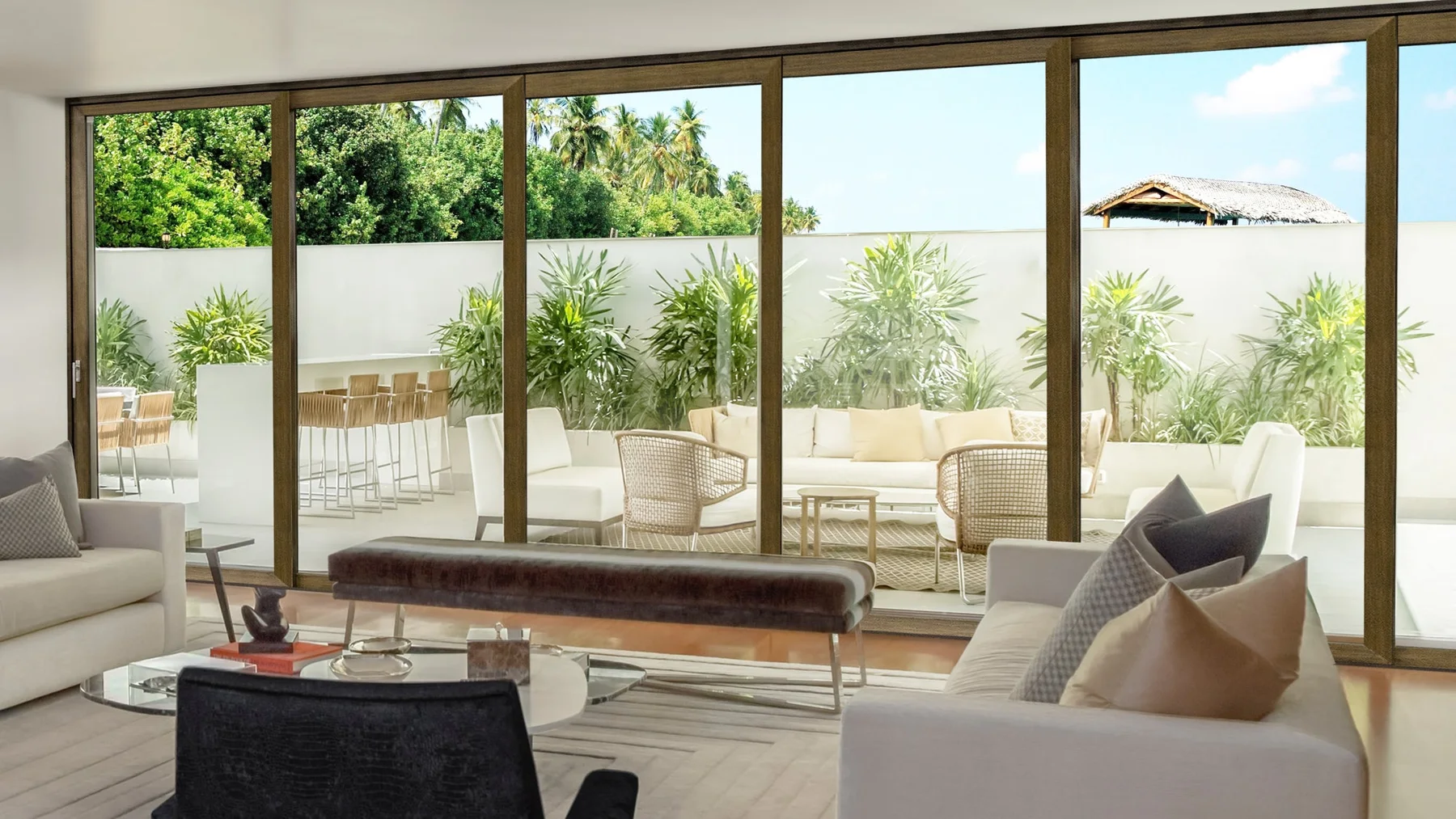

Lift and Slide, Private Residence

Explore the options

Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.

Wood
Stain-Grade Pine
Paint-Grade Poplar
Mahogany
Douglas Fir
Maple
Black Walnut
Surface Track
⁵⁄₁₆" ADA Surface Track
Recessed Tracks
1 ¼" ADA Recessed Track
1 ¼" ADA Recessed Drainage Track
2 ½" ADA Recessed Track
2 ½" ADA Recessed Drainage Track
2 ½" ADA Recessed Drainage Track with Retention Track

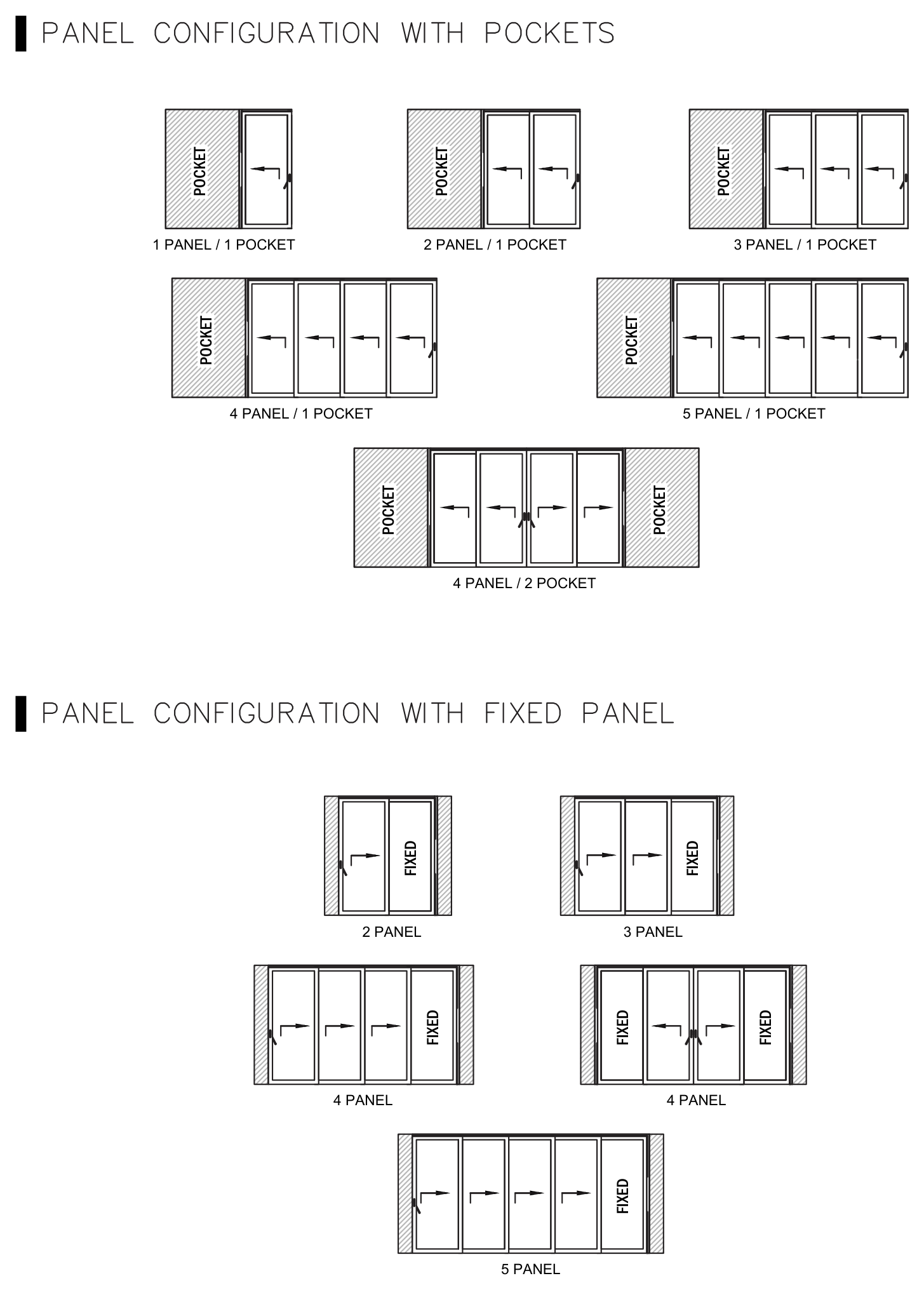

Configurations
Pocket - 2 Active
Pocket - 6 Active
1 Fixed - 4 Active - 1 Fixed
FlexCounter
Zero-Post Corner
True Radius
Handles
Priamo
Enea
Laser
Q-Arte
Recessed Handle
Temporary Handle
Hoppe Folding Handle
Divided Lites
Colonial
Cottage
Diamond
Victorian
Trellis Vertical
Custom Design
Glass
Low-E Glass
Triple-glazed Glass
Tempered Glass
Laminated Glass
SGP and PVB Interlayers
STC Sound Glass
Additional Options
Screens
Automation
Smart Locks
Smart Glass
Exterior Louvers
Between-the-Glass Blinds

Specifications & performance

Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.

Performance

U-Factor
-
SHGC
-
Impact Rated
-
AAMA Tested
-
Design Pressure (psf)
-
Air Infiltration (cfm/ft2)
-
Water Penetration Resistance (psf)
-
Structural Test Pressure (psf)
-
Florida Approval #
-

Specifications

Maximum Panel Height
144"
Minimum Panel Height
36"
Maximum Panel Width
192"
Minimum Panel Width
28"
Maximum Panel Weight
1,000 lbs
Panel Depth
2 ½"
Maximum Number of Panels
Unlimited
Stile
4"
Rail
4"

Design and installation planning

Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.

Measurement planningInstallation planningCare and maintenance

Your project

Request a quote

Solid Wood (LWWS.12). Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.

Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
