lift and slide doors
All Aluminum IMPACT (LIS.10)
Explore All Aluminum IMPACT (LIS.10) for entryways and indoor-outdoor living. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for entryways and indoor-outdoor living
Designed for extreme weather conditions, this system ensures maximum protection while offering smooth operation and an elegant all-aluminum finish.
All Aluminum IMPACT (LIS.10): maximum panel height 252"; maximum panel width 192"; stile 3 ¹⁵⁄₁₆"; style Modern.
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

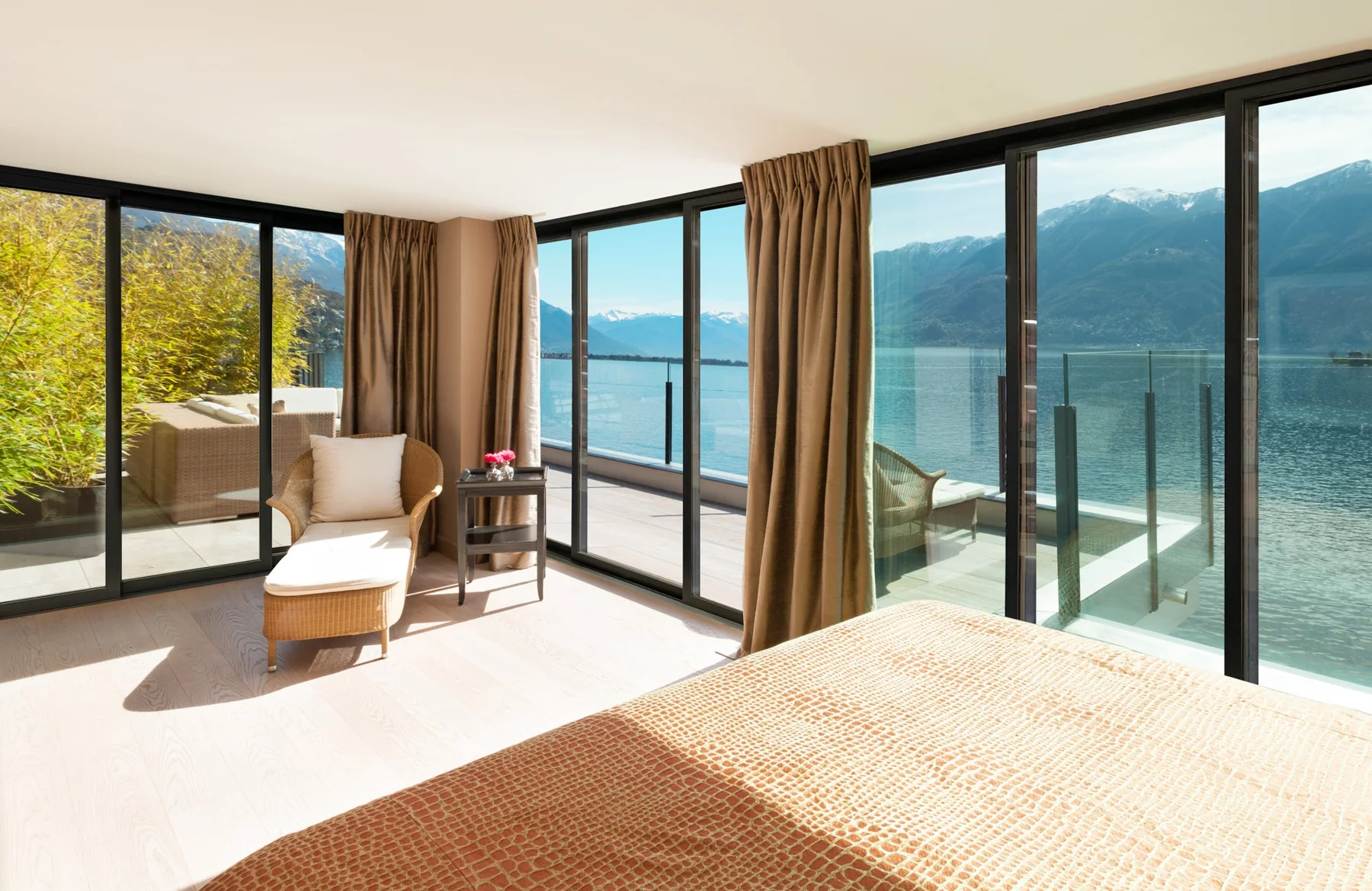

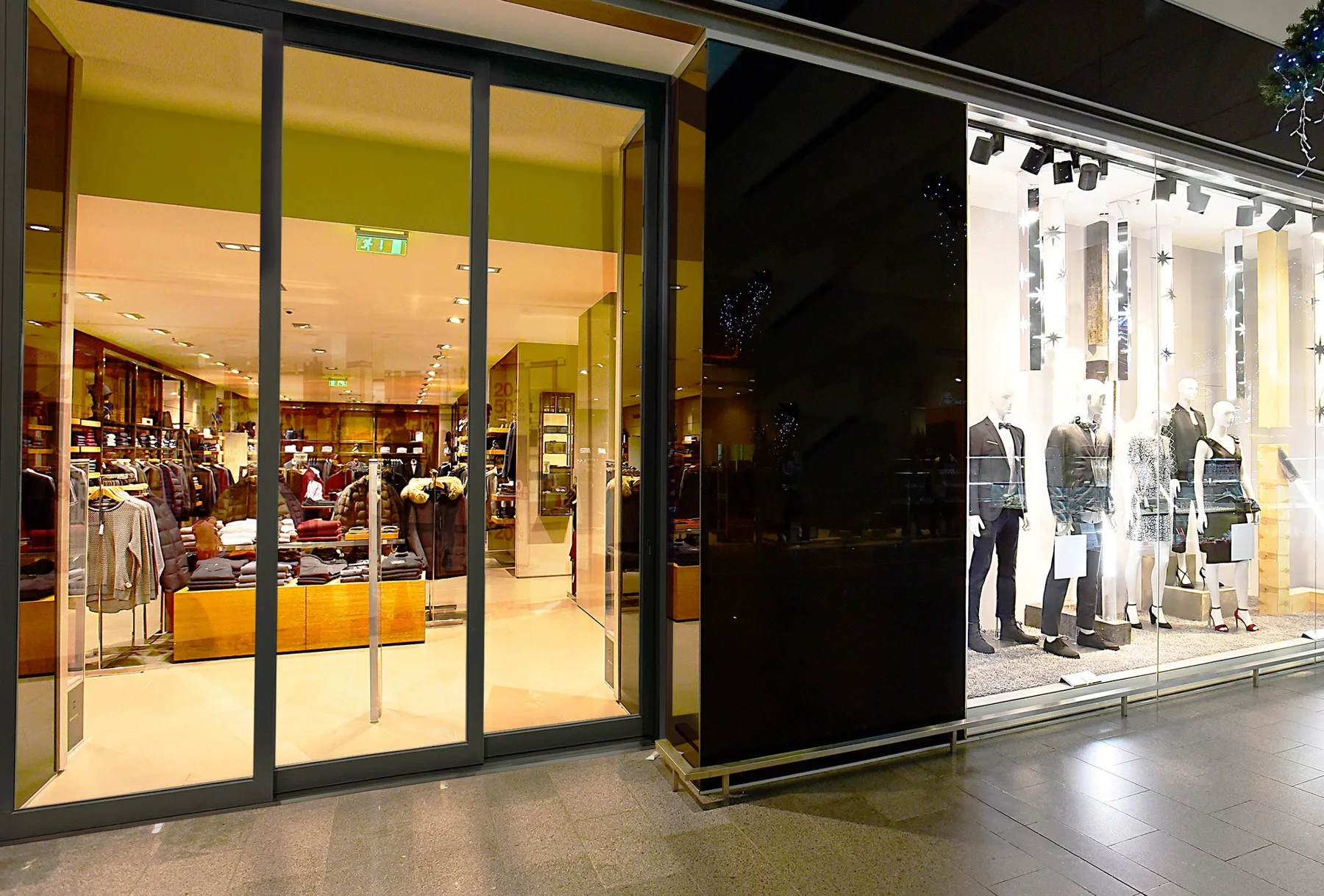

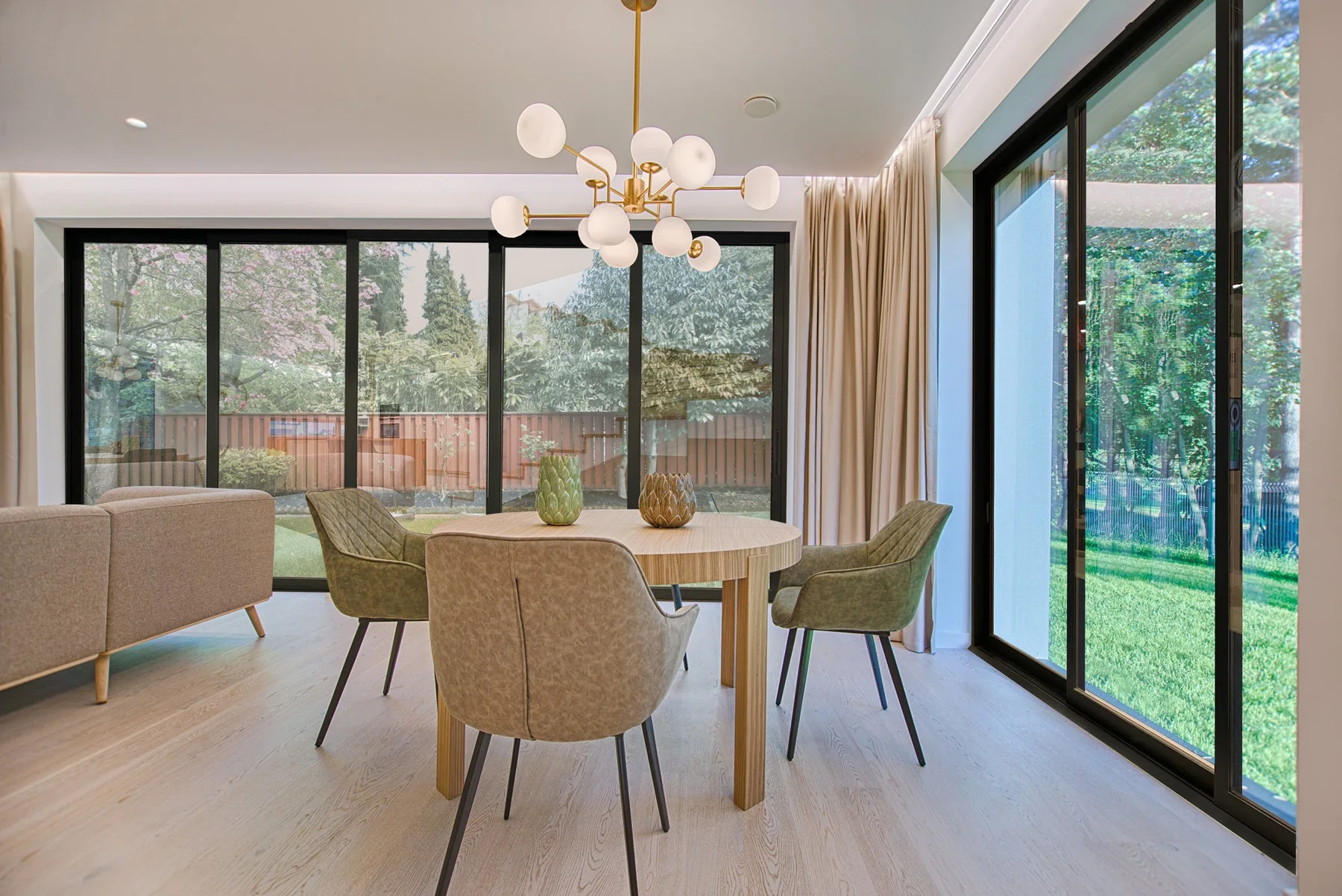

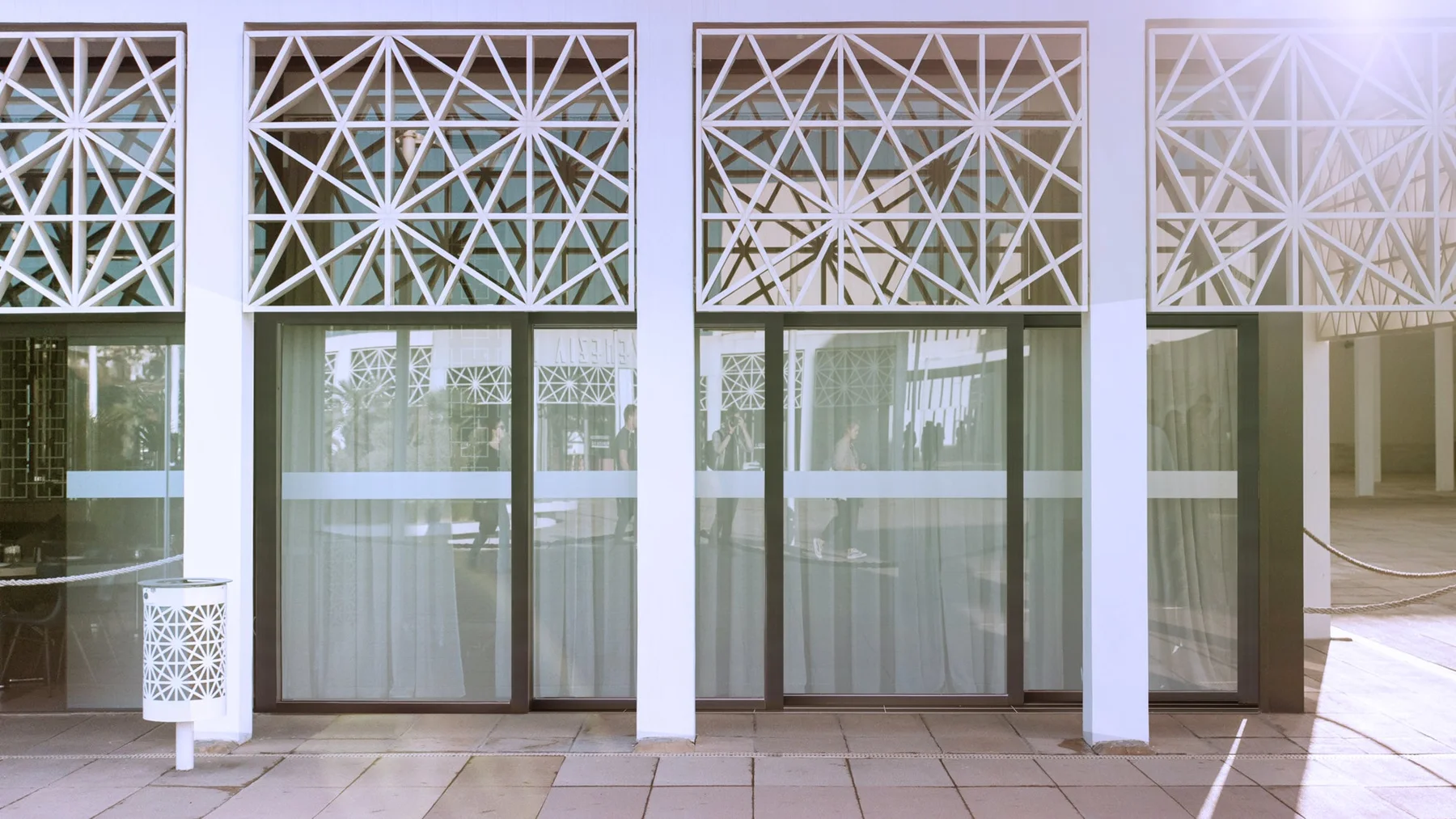

Photography & design details
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Surface Tracks
Recessed Tracks

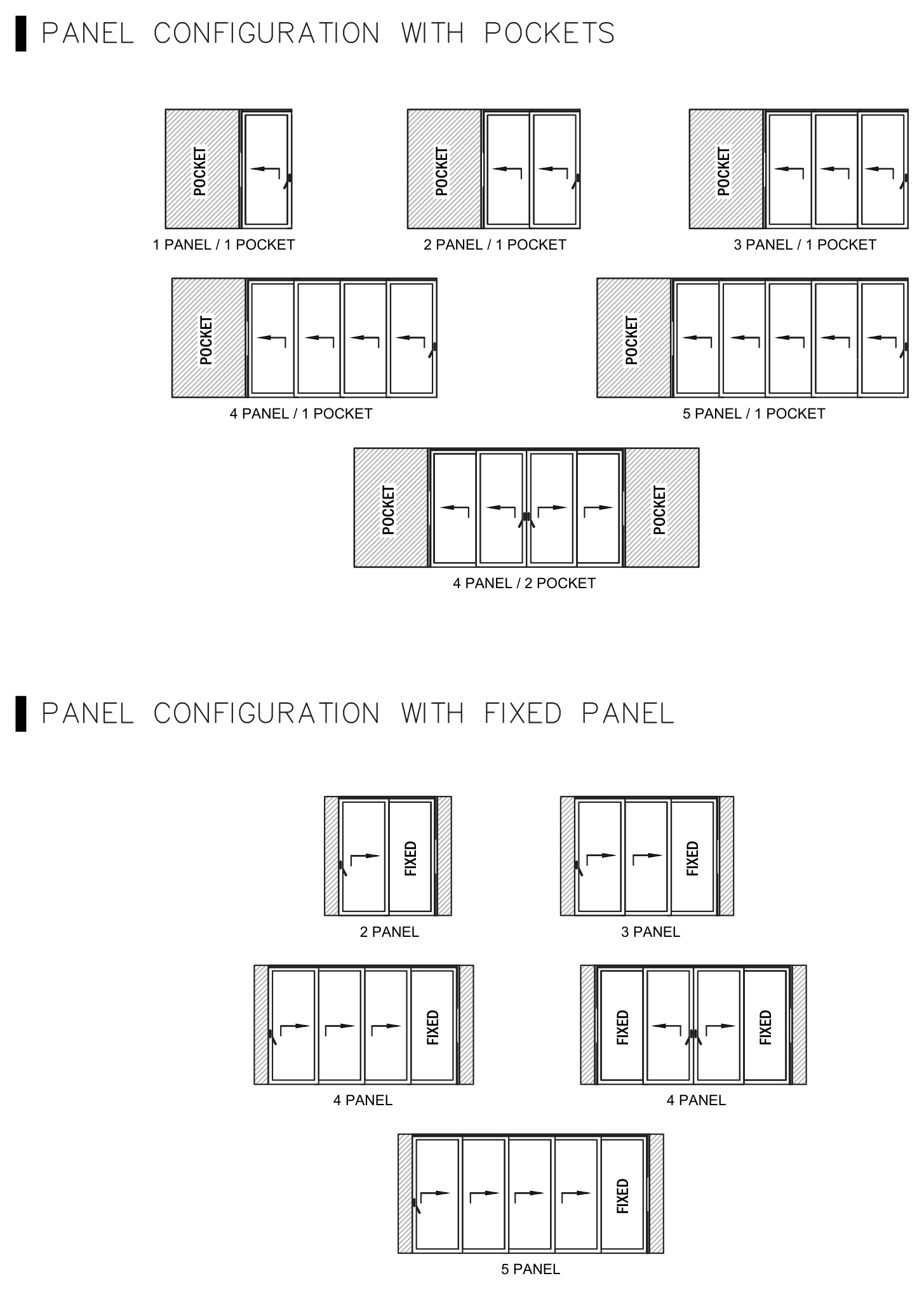

Configurations
Handles
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- Yes
- AAMA Tested
- -
- Design Pressure (psf)
- ±100.3
- Air Infiltration (cfm/ft2)
- 0.2
- Water Penetration Resistance (psf)
- 15.0
- Structural Test Pressure (psf)
- ±150.4
- Florida Approval #
- 28350.1.
Specifications
- Maximum Panel Height
- 252"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 192"
- Minimum Panel Width
- 28"
- Maximum Panel Weight
- 1,000 lbs
- Panel Depth
- 2 ¾"
- Maximum Number of Panels
- Unlimited
- Stile
- 3 ¹⁵⁄₁₆"
- Rail
- 3 ¹⁵⁄₁₆"
Design and installation planning
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Your project
Request a quote
All Aluminum IMPACT (LIS.10). Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
