All Aluminum Thermally Broken (FTS.60)
Explore All Aluminum Thermally Broken (FTS.60) for entryways and indoor-outdoor living. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for entryways and indoor-outdoor living
Combining thermal efficiency with an all-aluminum build, this system ensures excellent insulation and seamless indoor-outdoor transitions.
All Aluminum Thermally Broken (FTS.60): maximum panel height 120"; maximum panel width 40"; stile 2 ¹⁄₁₆"; style Modern.
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.

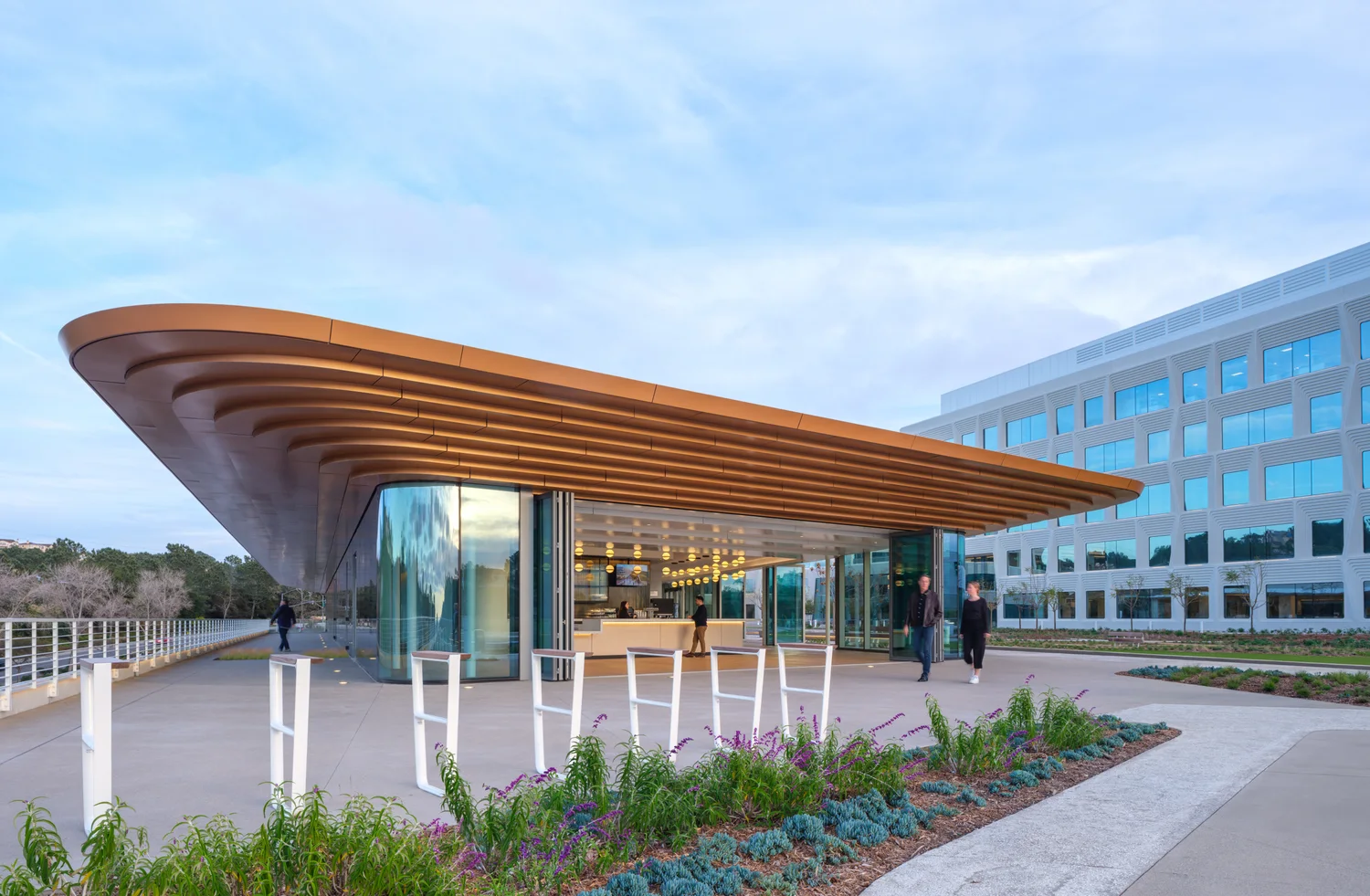

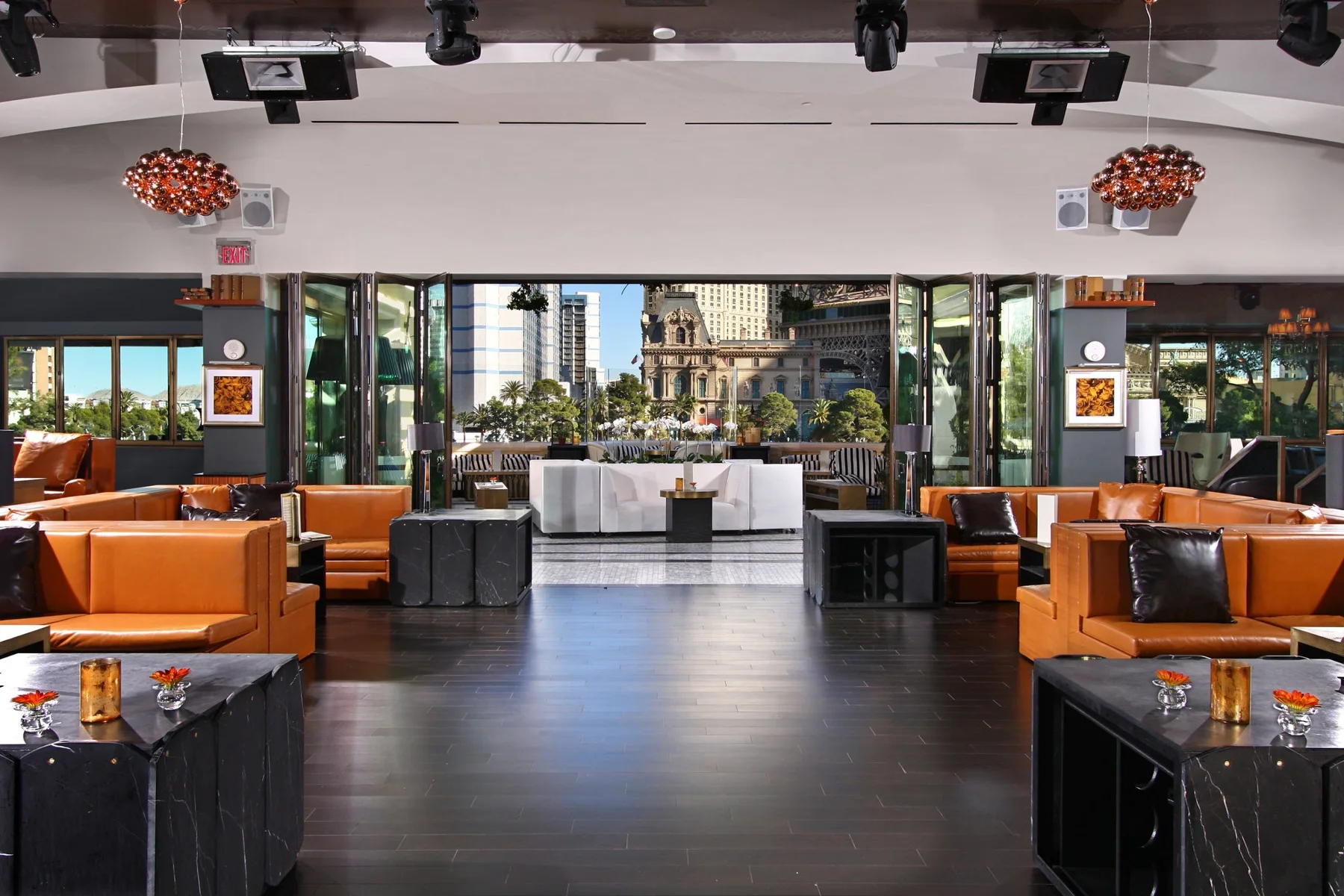

Photography & design details
View more photographs and drawings
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes

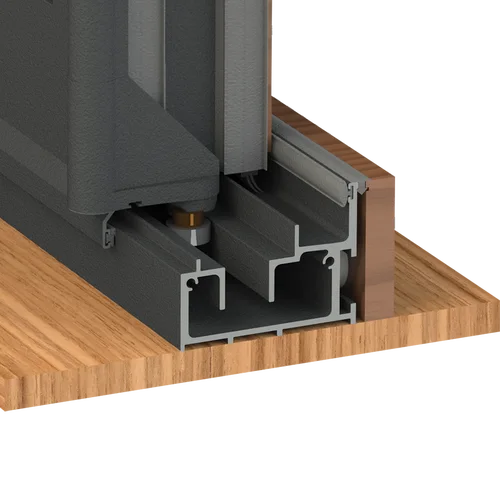

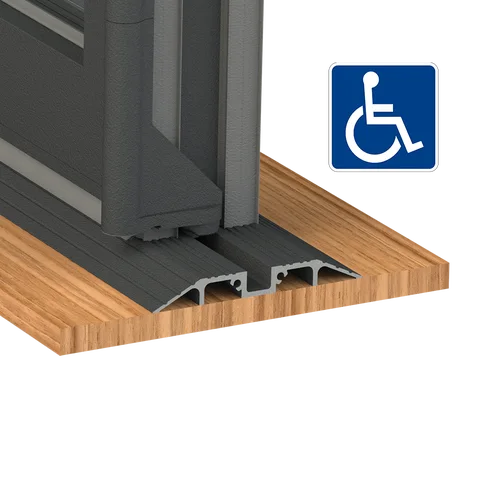

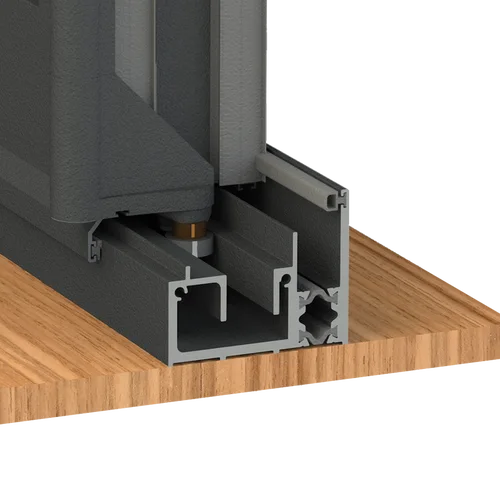

Surface Tracks

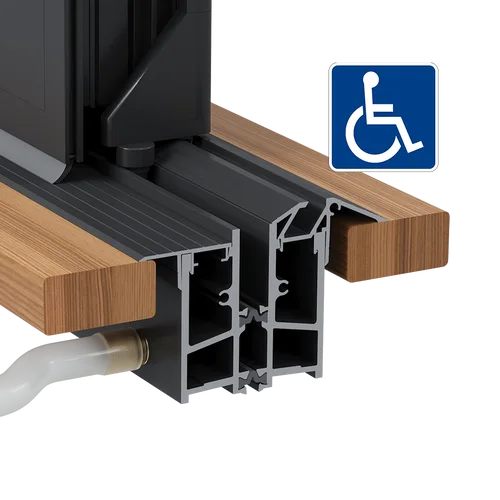

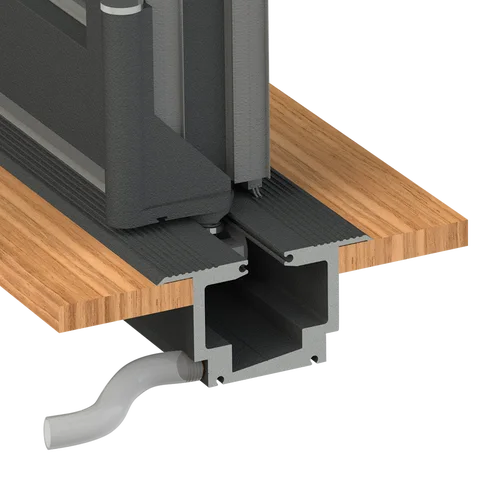

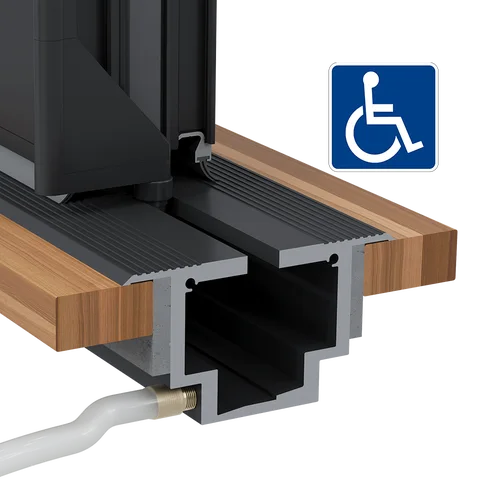

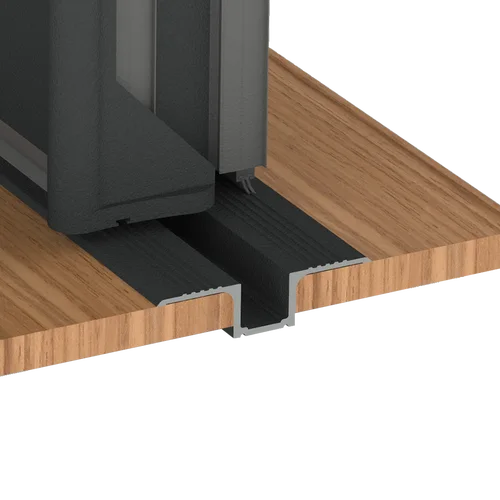

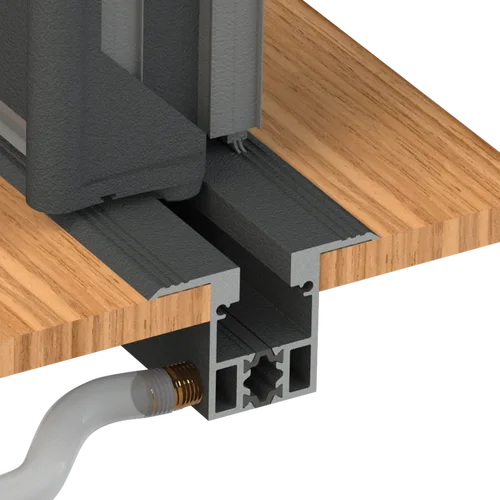

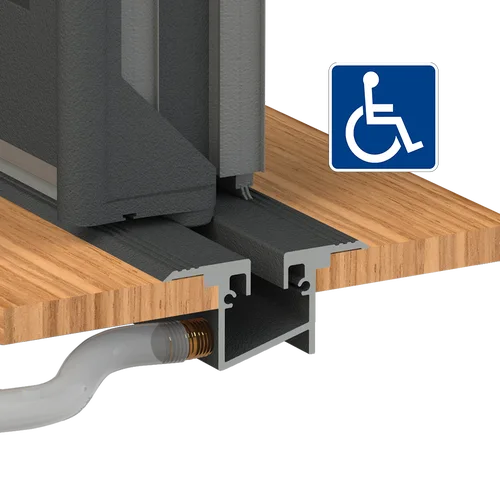

Recessed Tracks

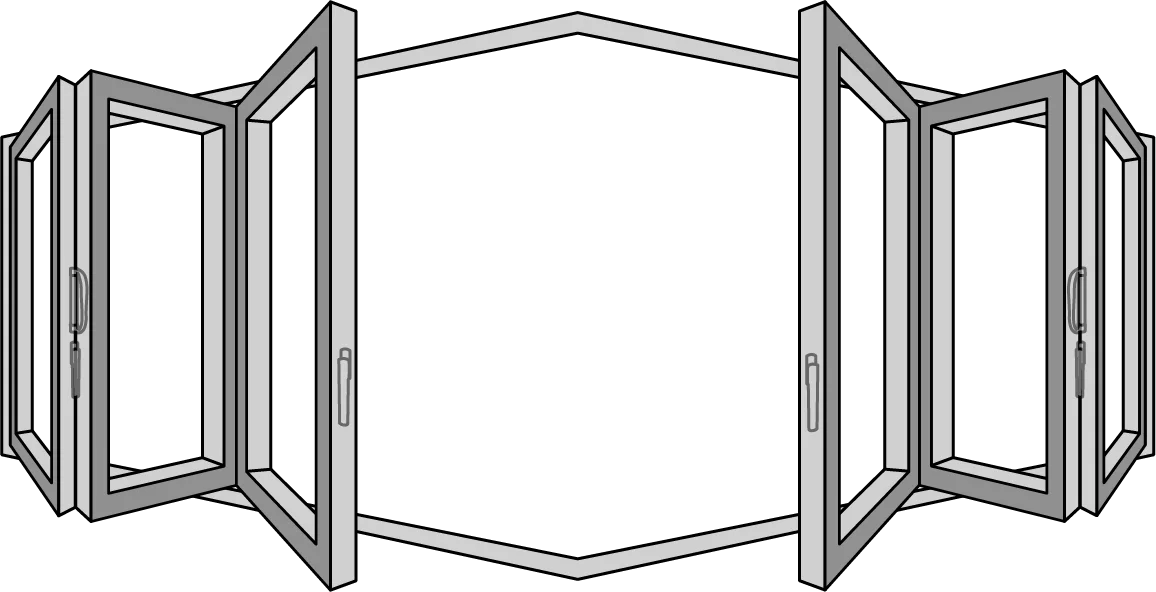

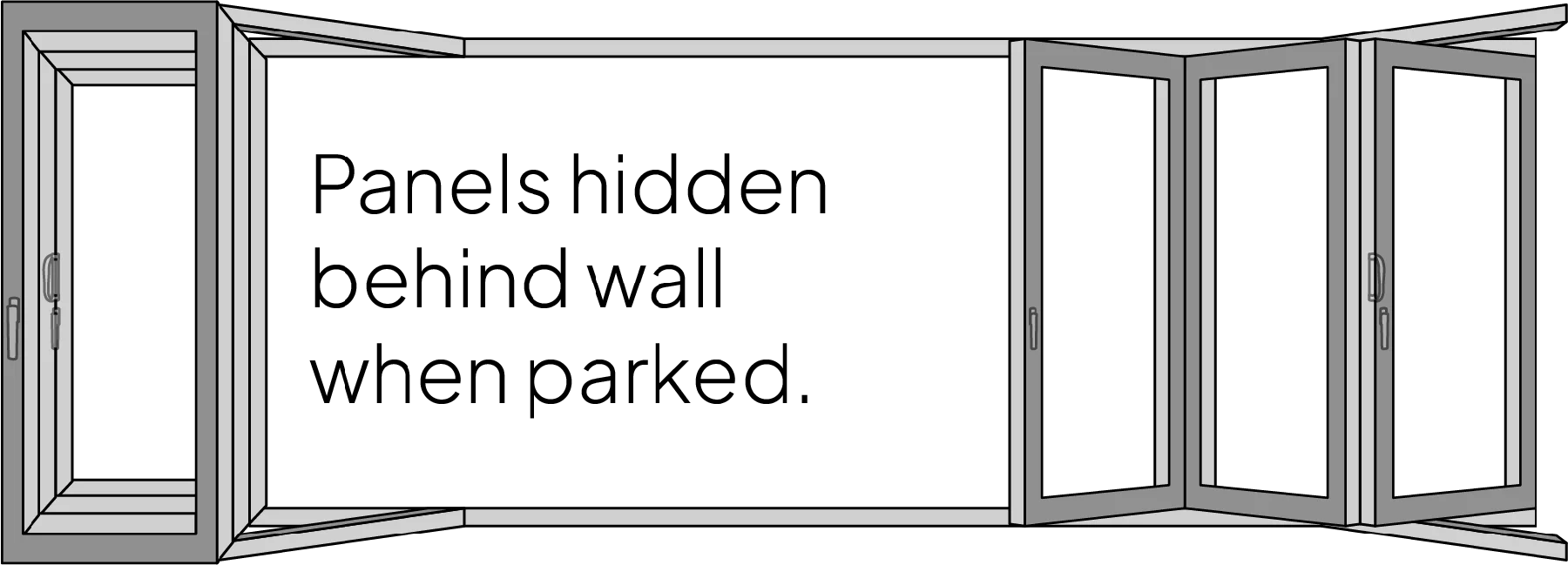

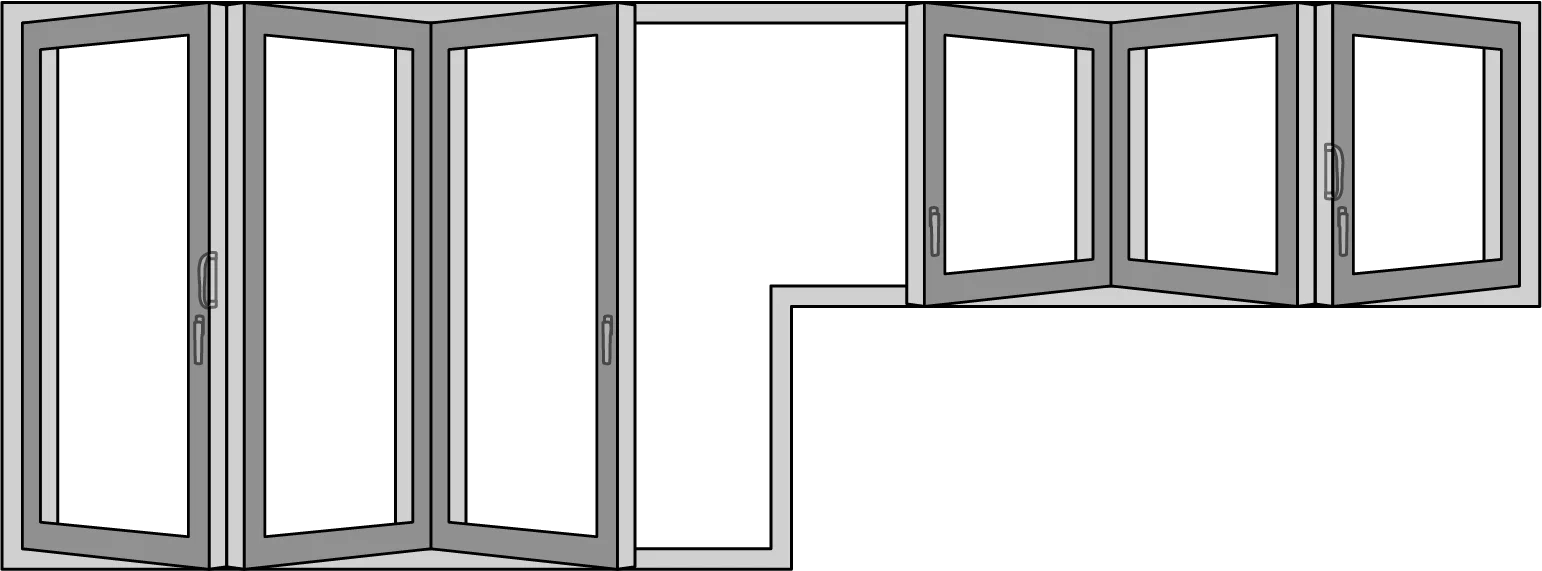

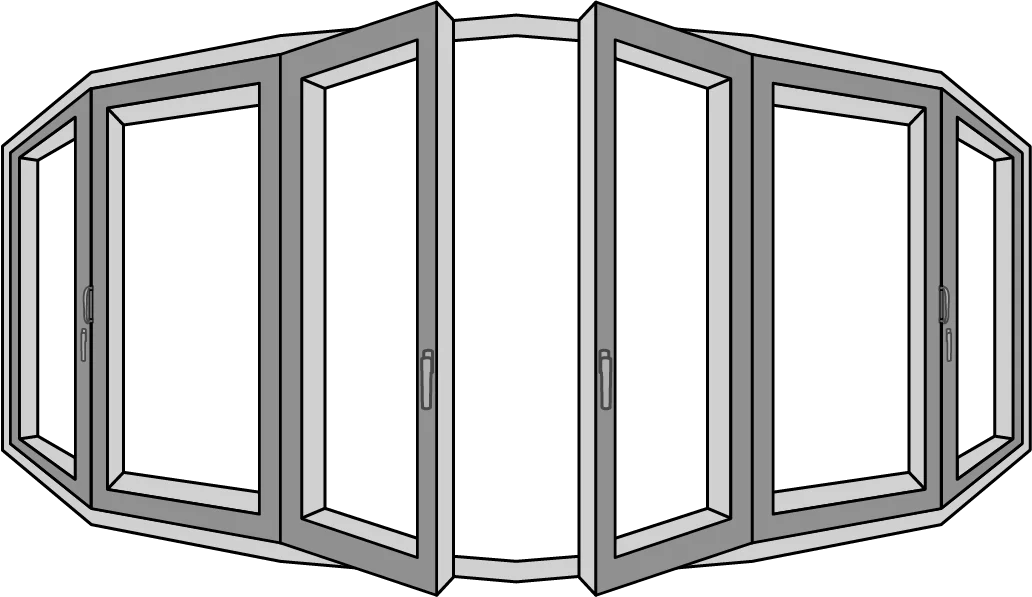

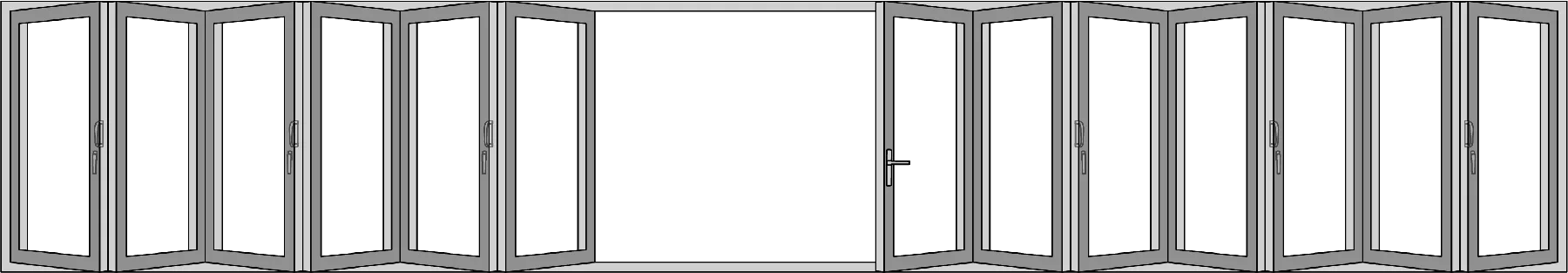

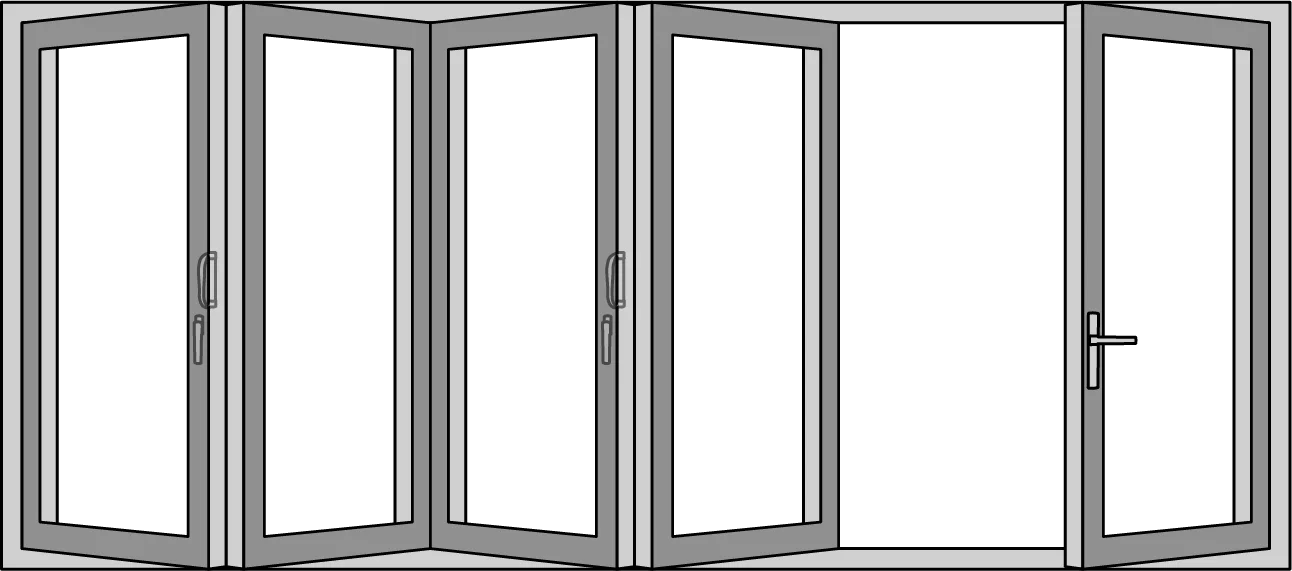

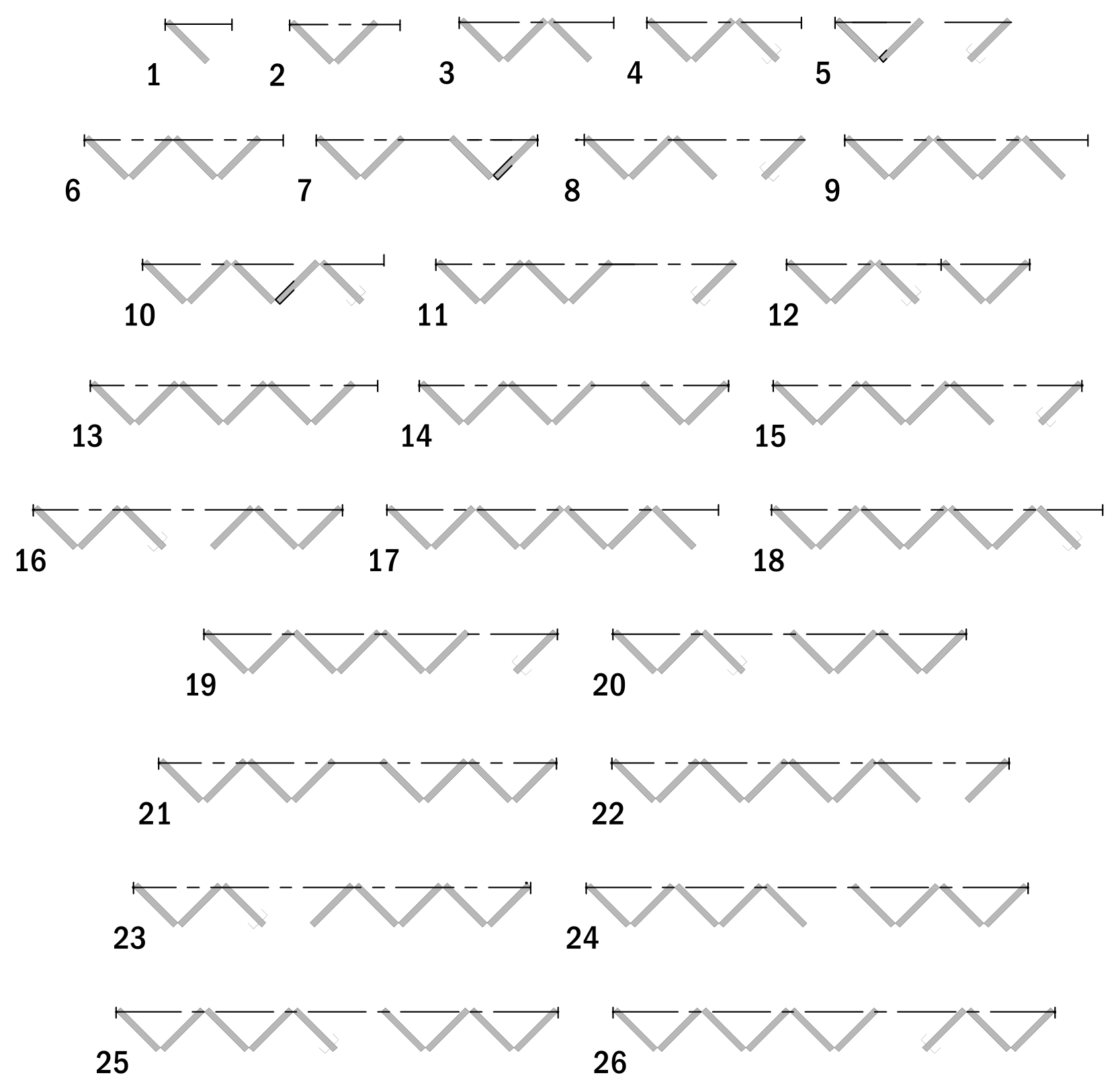

Configurations
Throw Handles
Pull Handles
Flag Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- 0.32
- SHGC
- 0.20
- Impact Rated
- -
- AAMA Tested
- Yes
- Design Pressure (psf)
- +45.11
- Air Infiltration (cfm/ft2)
- 0.11 @ 75 Pa, 0.28 @ 300 Pa
- Water Penetration Resistance (psf)
- 6.89
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 120"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 40"
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- 10 lbs per sqft
- Panel Depth
- 2 ⅜"
- Maximum Number of Panels
- 16 Bipart
- Stile
- 2 ¹⁄₁₆"
- Rail
- 2 ¹⁄₁₆"
Design and installation planning
Surface-track coordination

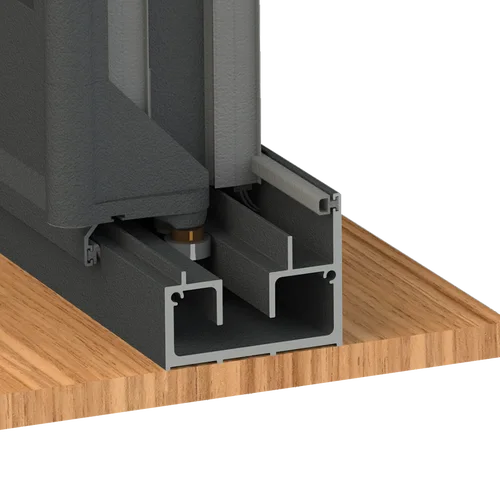

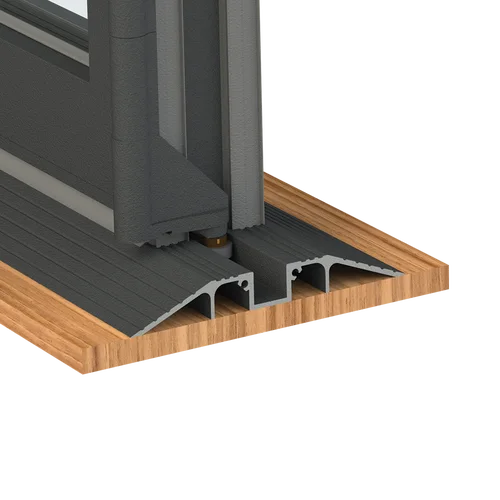

One surface-track option has a nominal ¾-inch rise above the finished floor and a 6-inch overall track width. These dimensions describe that track section, not an opening deduction or an accessibility approval. Confirm the selected sill profile and drainage detail with the floor construction.
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
