folding doors
Aluminum/Wood Clad Thermally Broken (FWTS.75)
Explore Aluminum/Wood Clad Thermally Broken (FWTS.75) for entryways and indoor-outdoor living. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for entryways and indoor-outdoor living
This system blends thermal efficiency with the aesthetic appeal of wood and the strength of aluminum, ensuring a stylish and energy-efficient solution.
Aluminum/Wood Clad Thermally Broken (FWTS.75): Panel dimensions are confirmed for the selected configuration; stile 2 ¹⁄₁₆"; style Modern to Traditional.
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.

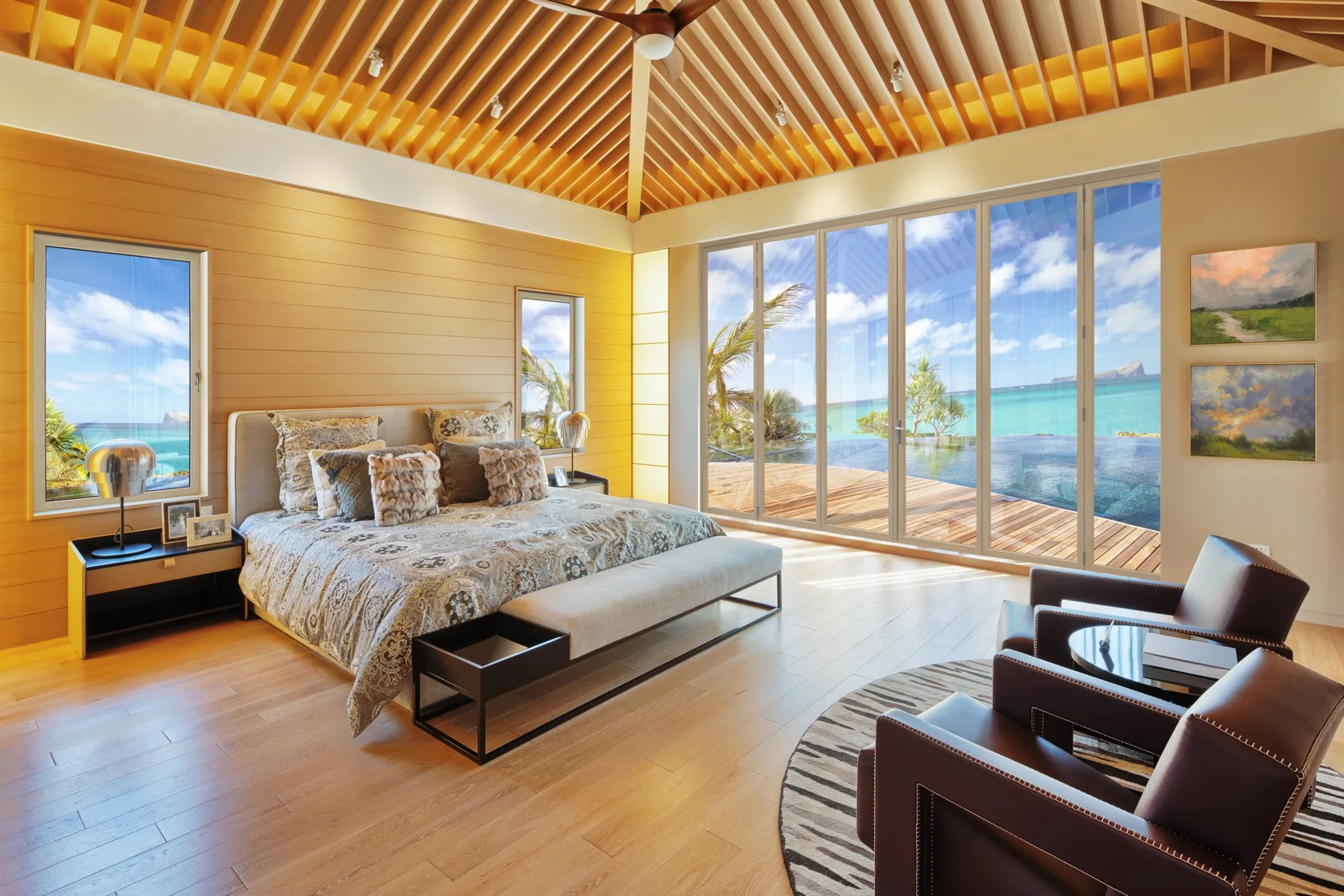

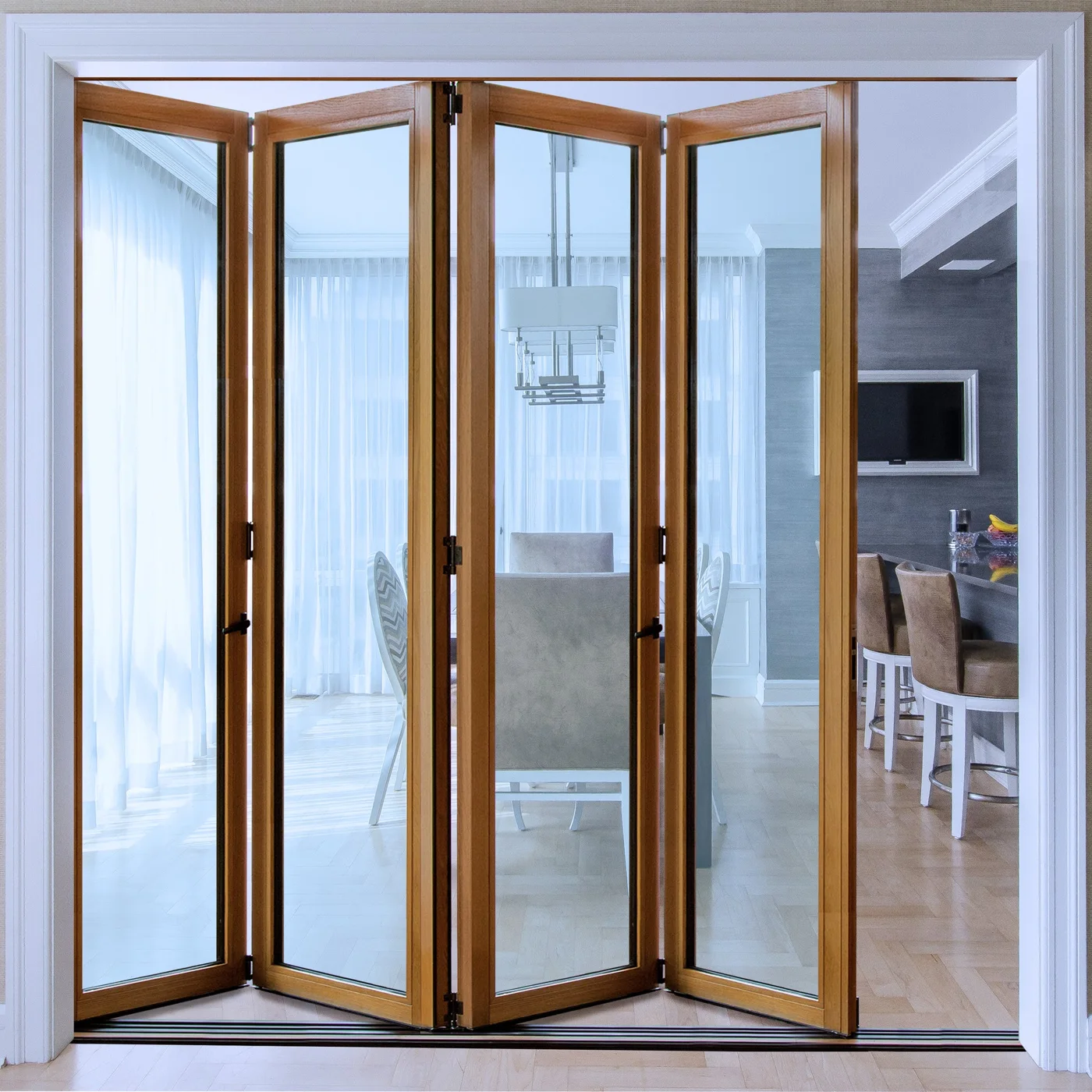

Photography & design details
Configuration drawings and planning details

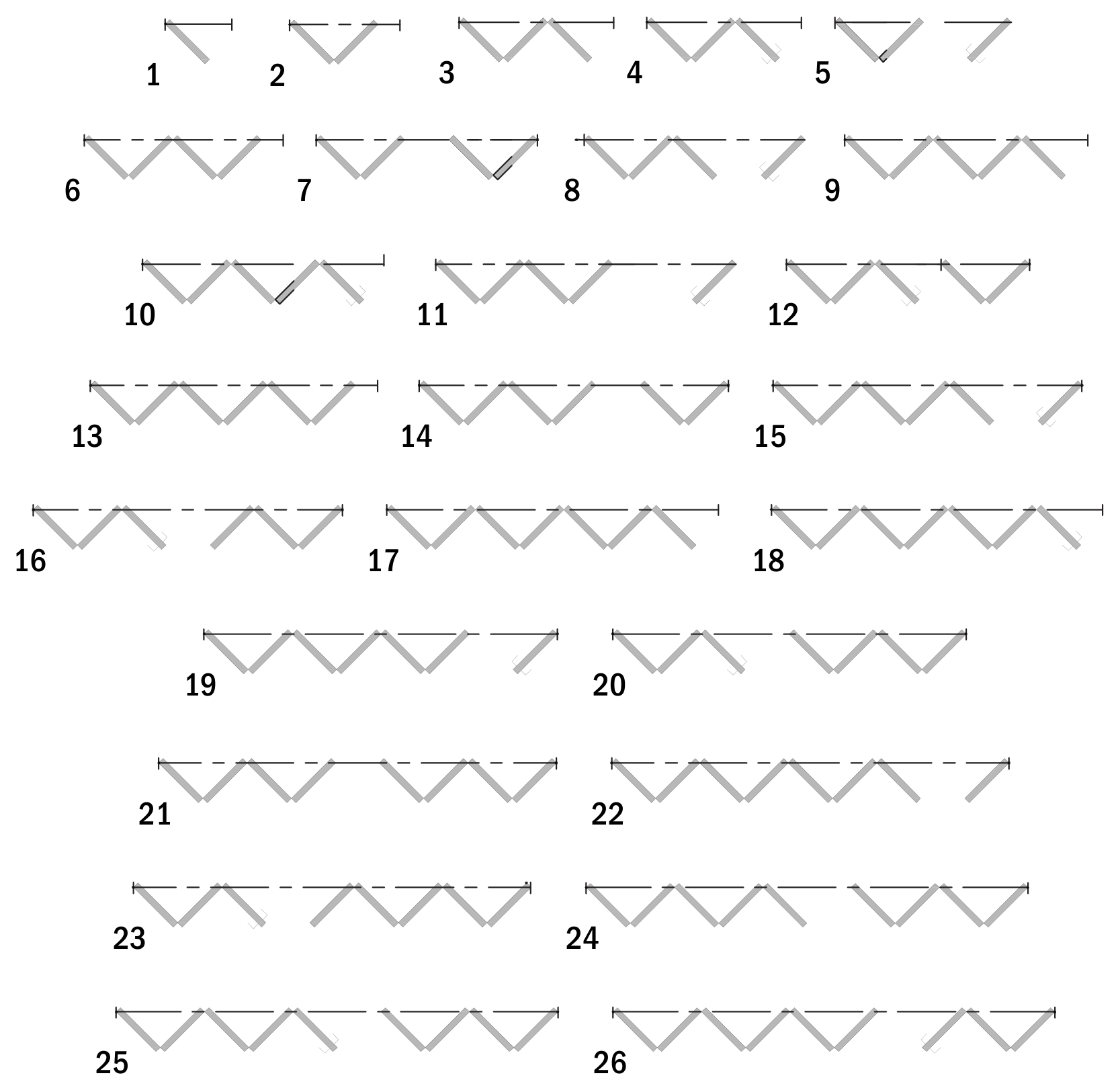

The layout diagram shows how panel groups fold to one side or divide between sides. Choose the parking location and everyday access arrangement first, then check the folded stack and handle clearance beside the opening. Panel count, frame dimensions and individual panel limits are confirmed together for the selected configuration.
Use the drawings to discuss Aluminum/Wood Clad Thermally Broken (FWTS.75) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Wood
Surface Tracks
Recessed Tracks
Configurations
Throw Handles
Pull Handles
Flag Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- Confirmed for your configuration
- Minimum Panel Height
- 36"
- Maximum Panel Width
- Confirmed for your configuration
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- 10 lbs per sqft
- Panel Depth
- 2 ¹¹⁄₁₆"
- Maximum Number of Panels
- 16 Bipart
- Stile
- 2 ¹⁄₁₆"
- Rail
- 2 ¹⁄₁₆"
Design and installation planning
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Plan the opening
Your project
Request a quote
Aluminum/Wood Clad Thermally Broken (FWTS.75). Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
