horizontal sliding walls
Solid Wood (HWWS.66)
Explore Solid Wood (HWWS.66) for entryways and indoor-outdoor living. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for entryways and indoor-outdoor living
Crafted from high-quality wood, this system offers a warm, natural aesthetic with modern horizontal sliding functionality for a timeless design.
Solid Wood (HWWS.66): maximum panel height 126"; maximum panel width 40" Main Panel 36", Convertible / Pivot Panel; stile 4"; style Traditional.
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.

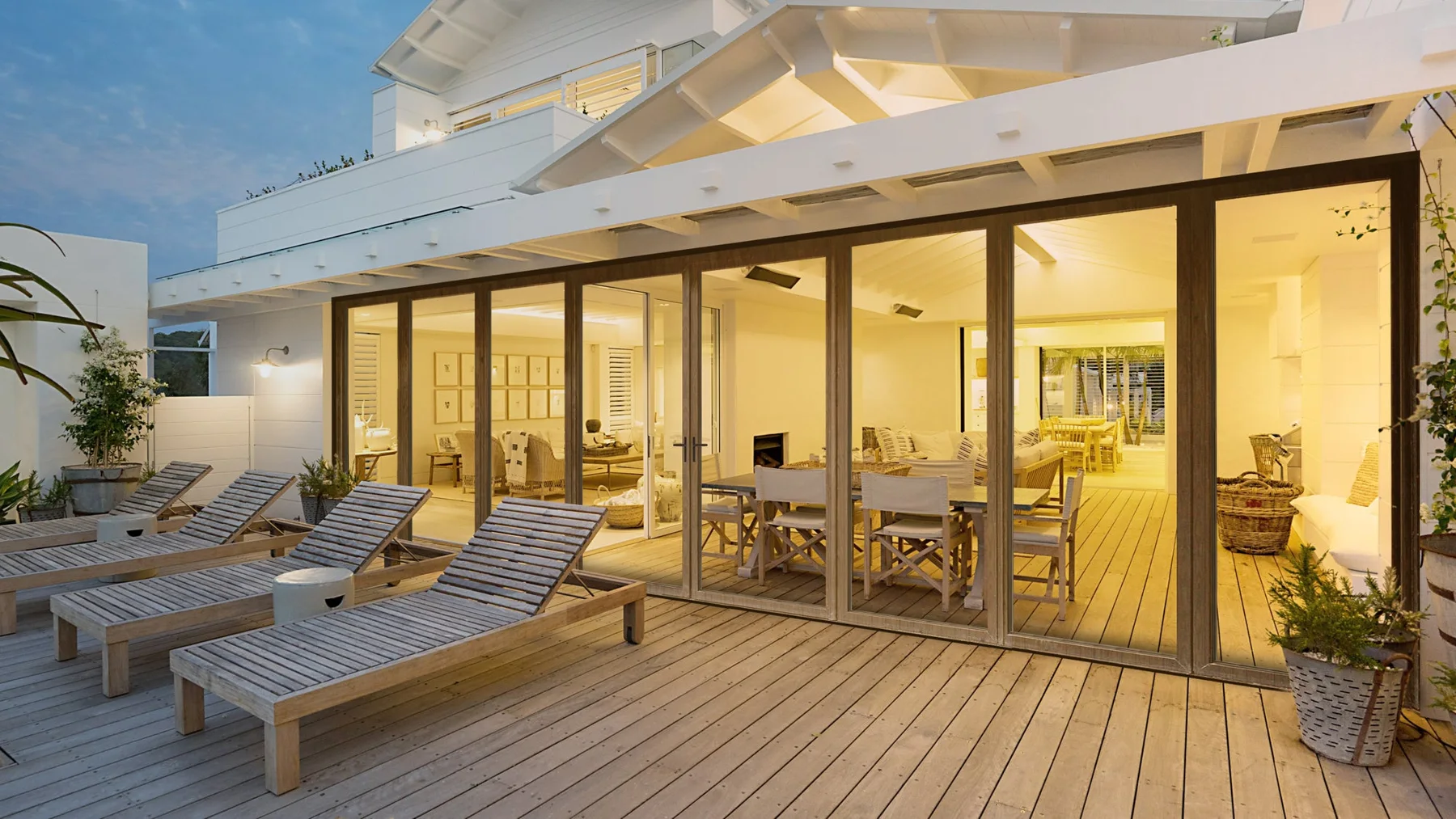

Photography & design details
Configuration drawings and planning details

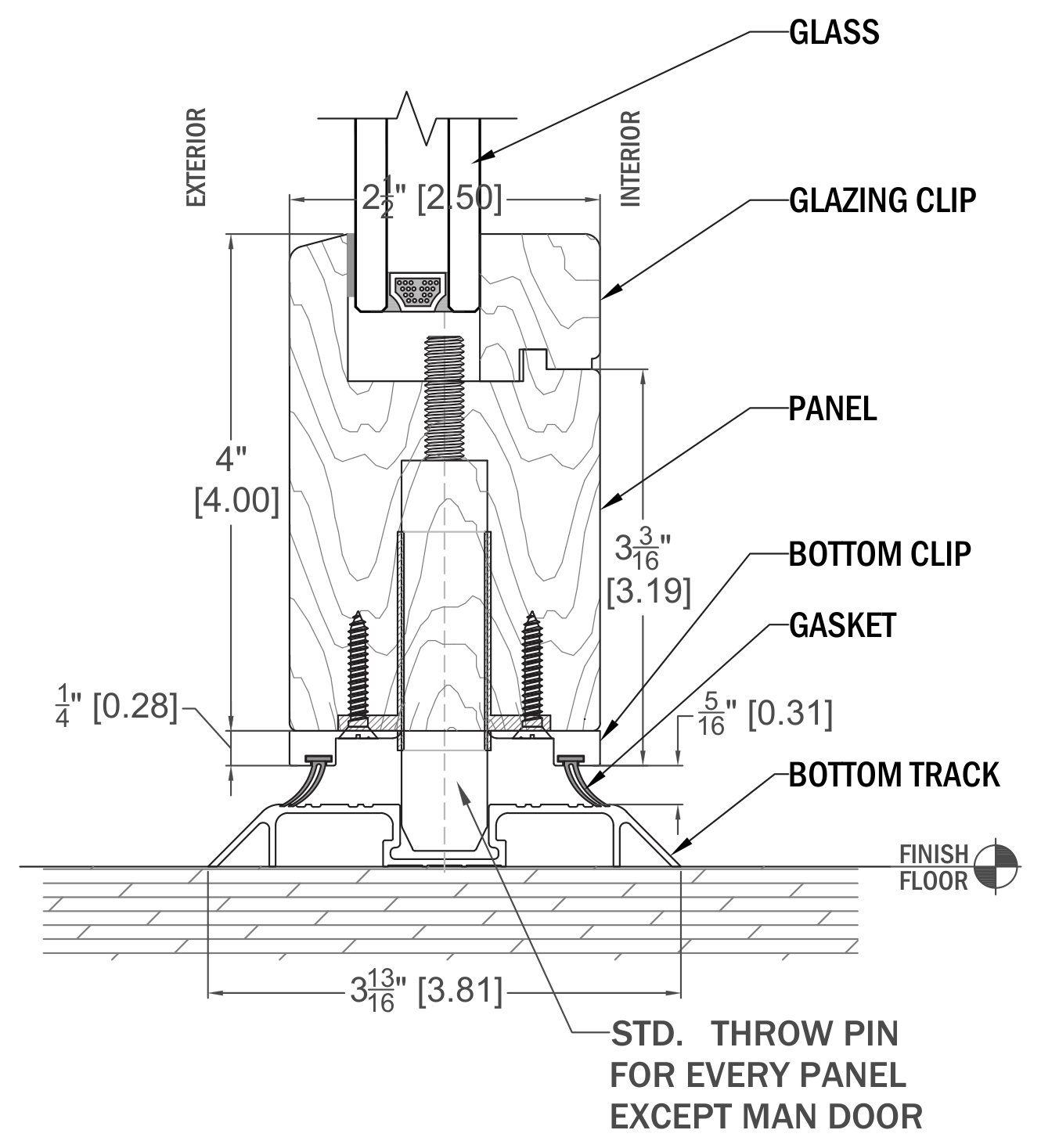

The track section identifies the panel, lower components and finished-floor reference for this series. Coordinate the selected track with the surrounding floor construction, panel parking and service access. The illustrated section is a design reference; the installation package must also identify the head support, jambs, anchors and water-management details.
Use the drawings to discuss Solid Wood (HWWS.66) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Wood

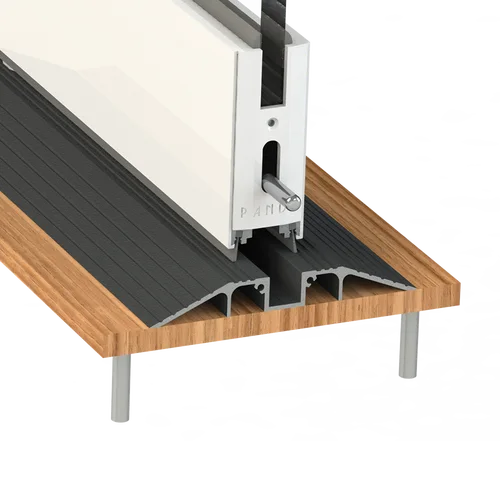

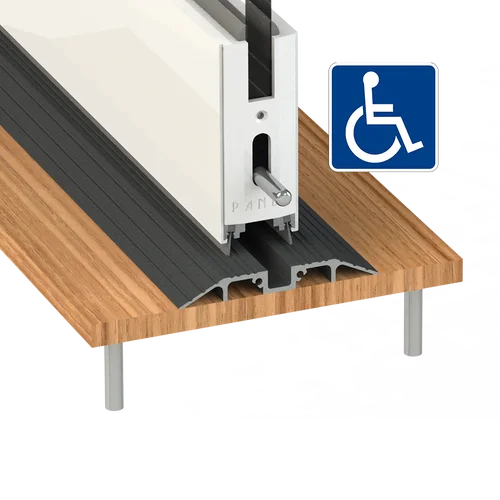

Surface Tracks

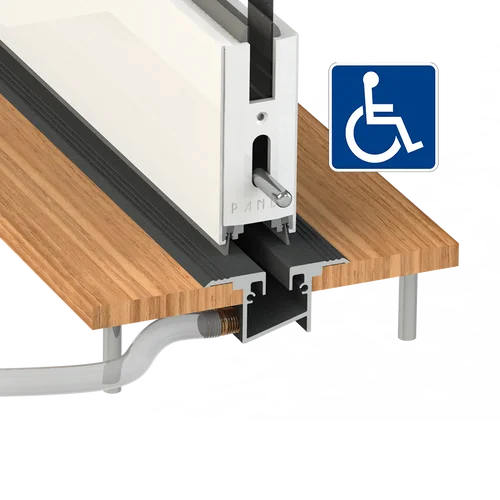

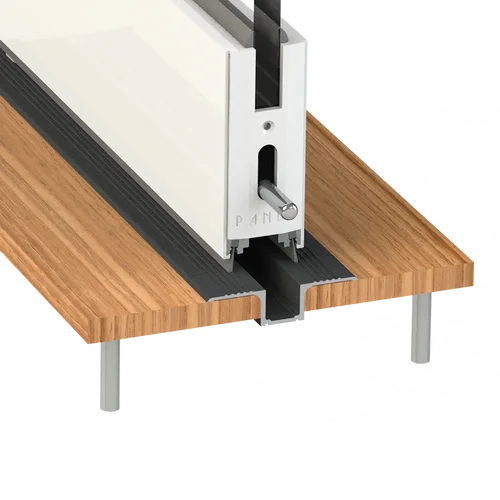

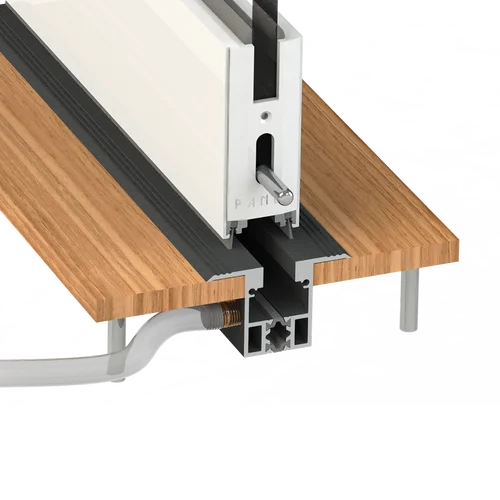

Recessed Tracks

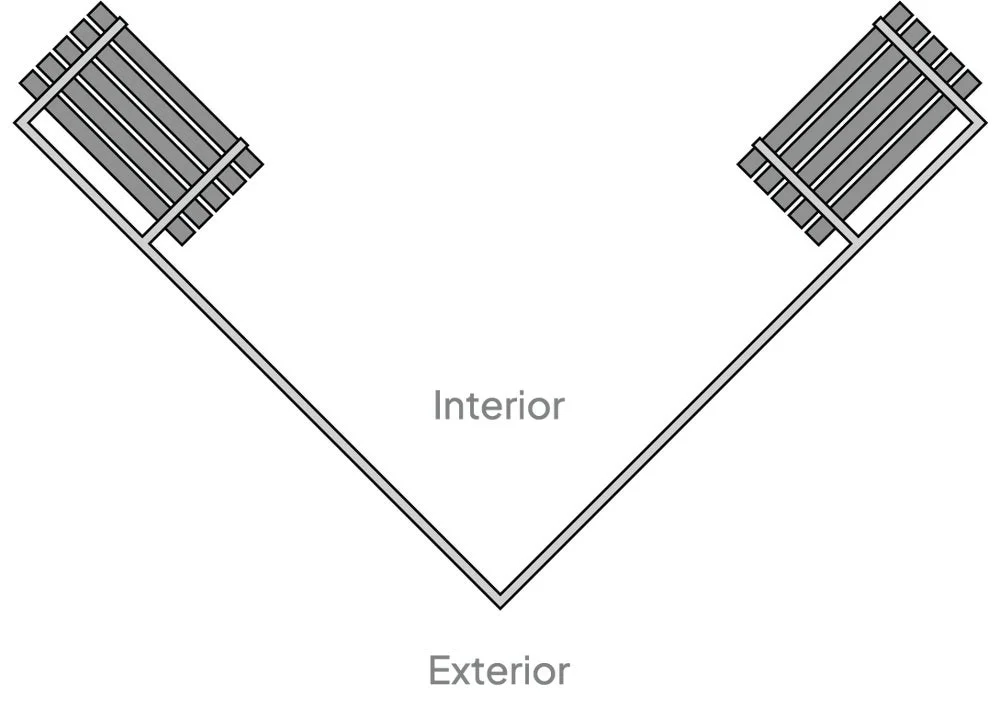

Configurations
Throw Handles
Flag Handles
Panic Hardware
Divided Lites
Glass

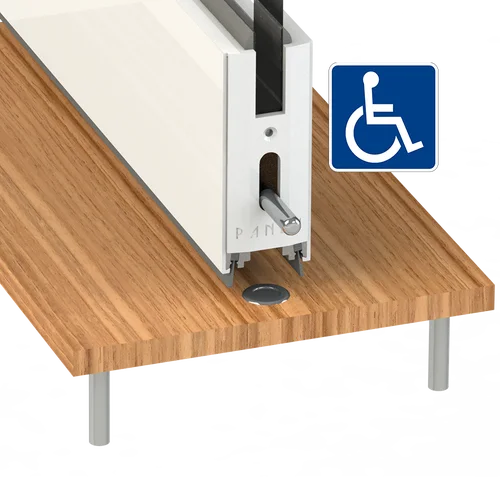

Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 126"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 40" Main Panel 36", Convertible / Pivot Panel
- Minimum Panel Width
- 25"
- Maximum Panel Weight
- 11 lbs per sqft
- Panel Depth
- 2 ½"
- Maximum Number of Panels
- Unlimited
- Stile
- 4"
- Rail
- 4"
Design and installation planning
Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Plan the opening
Your project
Request a quote
Solid Wood (HWWS.66). Start with the opening purpose: a daily entry, a patio connection or a wall that opens for entertaining. Record the finished floor heights, the direction of travel and the space available for panels and hardware.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
